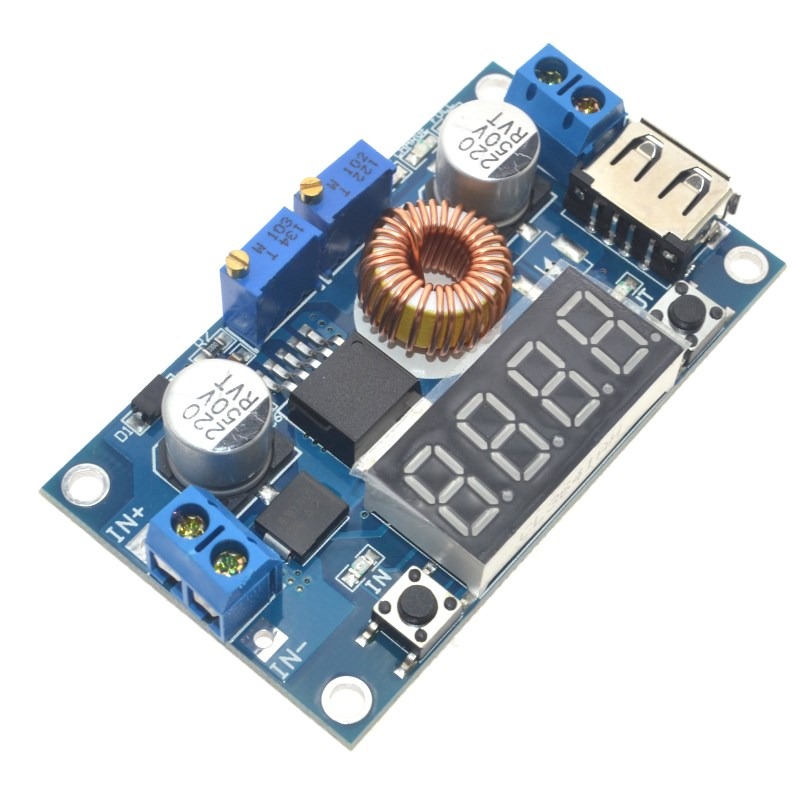

XL4015 1.2V – 32V 5A DC-DC Step-down Buck CC/CV Battery Charger LED Driver with Volt, Amp & Power Meter

Features:

• Digital meter displays input and output voltages, output current, and output power.
• Operates in Constant Current (CC) or Constant Voltage (CV) mode, optimum for driving LEDs, laser diodes, charging batteries, and as a general-purpose voltage and current source.

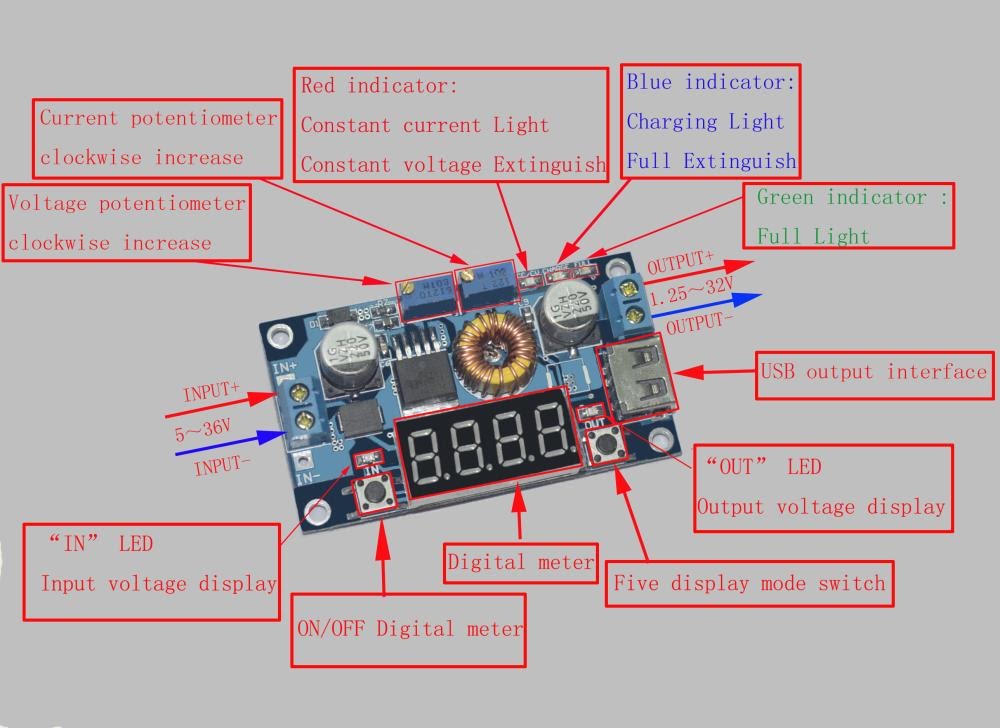

• The left button enables and disables the meter display. Right button switches between the input or output voltages, current, or power, or selects a continuous scrolling display of the parameters. “In” and “Out” LEDs indicate whether the meter is displaying the input or the output voltage.
• The voltmeter can be calibrated to ensure measurement accuracy.
• Screw terminal input connections, screw terminals, or USB connector for the output.

Specifications:

• Input voltage range: 5V – 36VDC
• Output voltage range: 1.2V – 34VDC adjustable via onboard potentiometer
  (Input voltage must be at least 2V greater than output voltage)
• Output current: 0A – 5A peak, 4A continuous (see Notes below)
• Output power: 75W maximum
• Voltmeter range: 1.2V to 40.0V, 0.1V display resolution
• Current meter range: 0.00A to 5.00A, 0.01A display resolution
• Power meter range: 0.0W to 99.9W, 0.1W display resolution
• Electrical Isolation: Non-Isolated
